SAE J 1401 High Pressure Rubber Hydraulic Brake Tube
SAE J1401 High Pressure Hydraulic Oil Brake HoseStandard: SAE J 1401 Structure of hydraulic brake hose: Inner tube: seamless, brake fluid resistant speical compound synthetic rubberReinforcement: 2 high tensile synthetic textile braidsOuter tube: black, oil, weather and abrasion resistant synthetic ......
Send Inquiry
Product Description
SAE J1401 High Pressure Hydraulic Oil Brake Hose
Standard: SAE J 1401
Structure of hydraulic brake hose:
Inner tube: seamless, brake fluid resistant speical compound synthetic rubber
Reinforcement: 2 high tensile synthetic textile braids
Outer tube: black, oil, weather and abrasion resistant synthetic rubber.
Safety factor: 3:1
Application: hydraulic brake lines automobiles
Temperature range: -40C(-40F) ~ +100C(+212F)
Specification of hydraulic oil brake hose

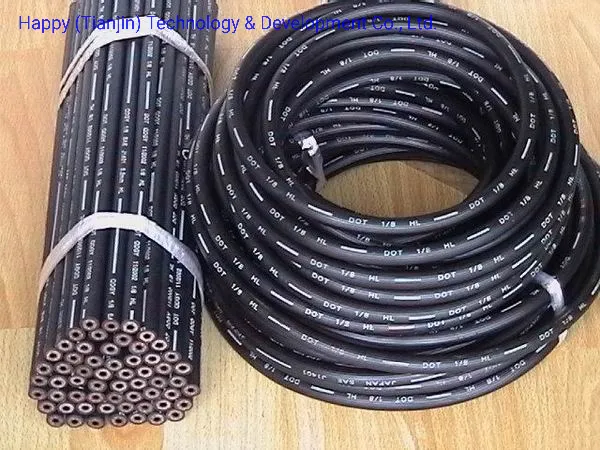

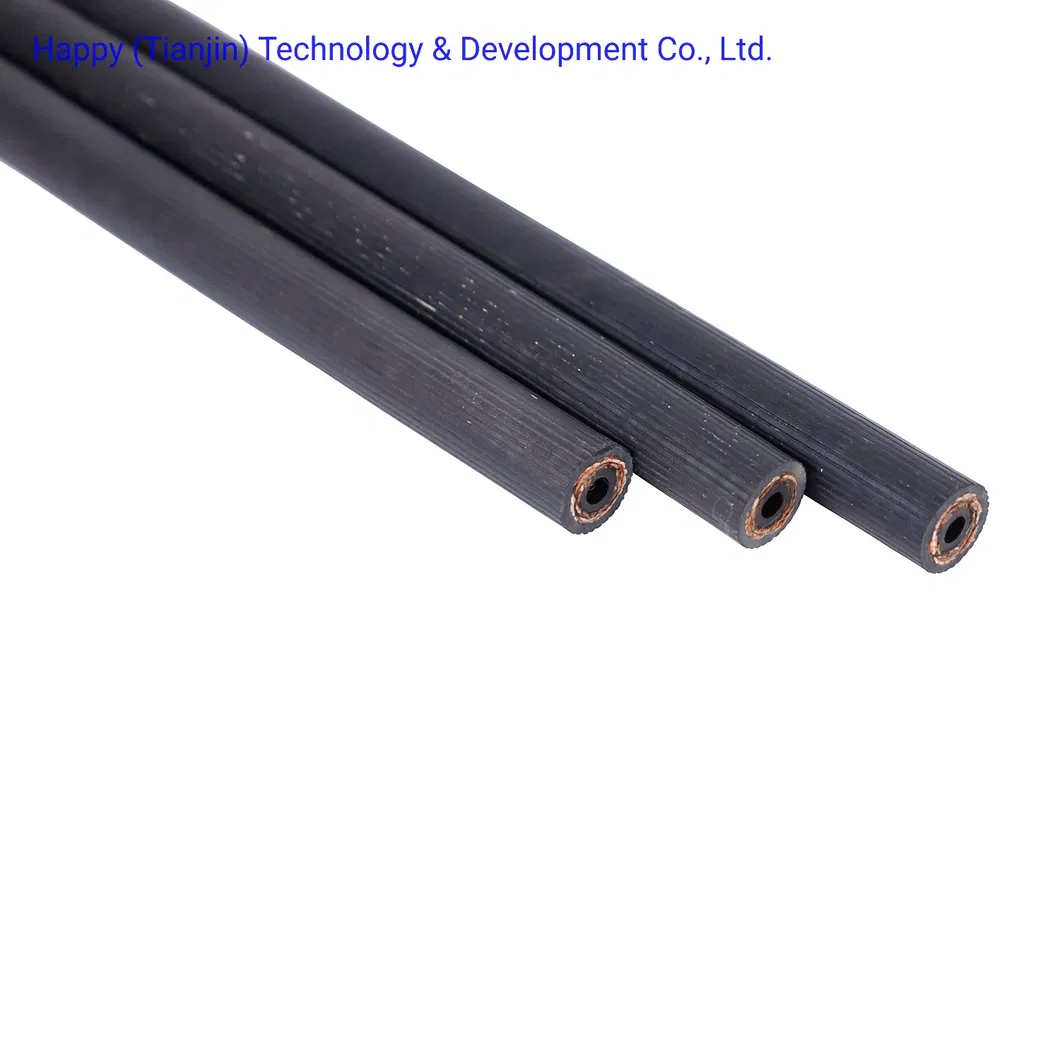

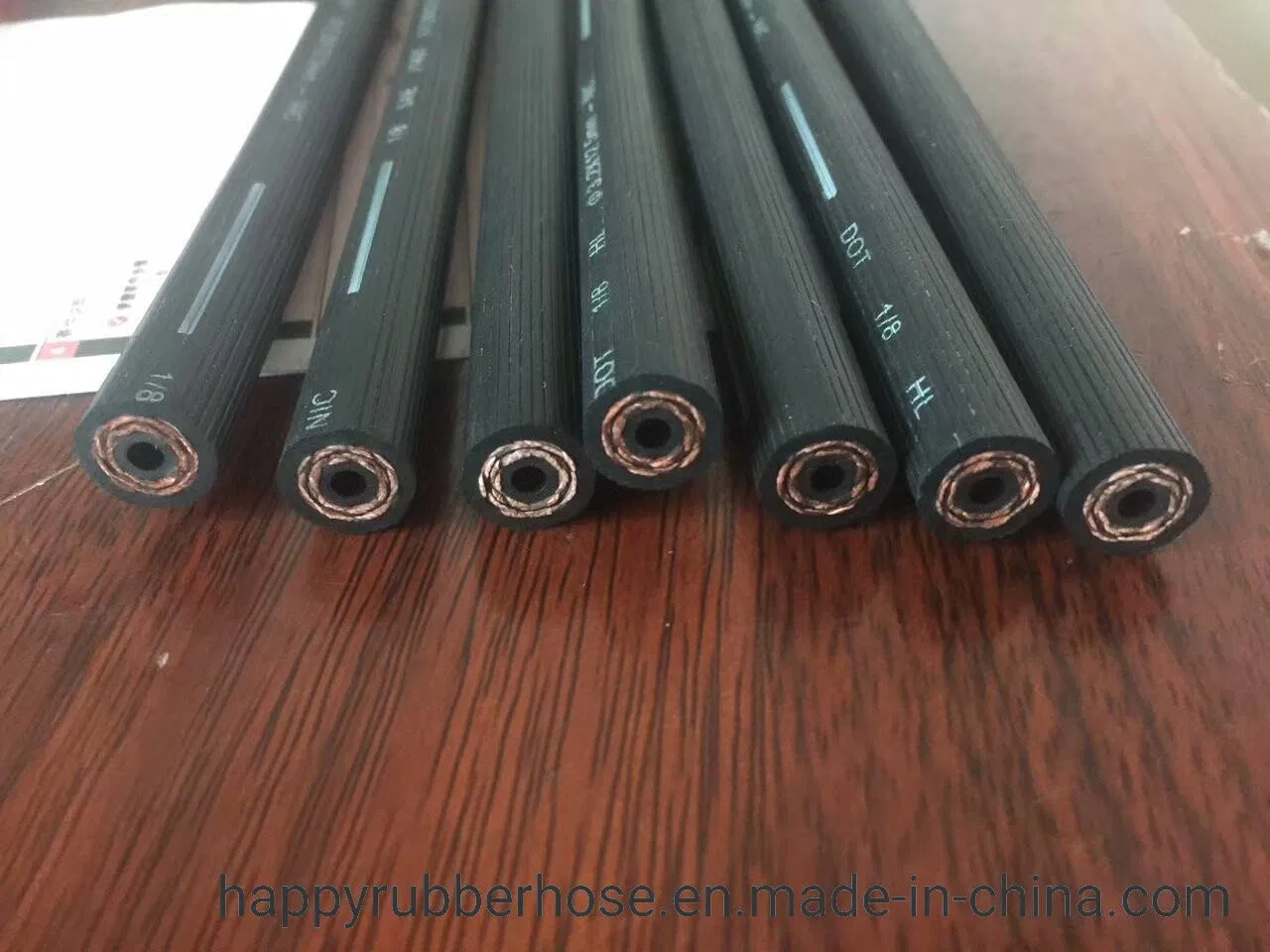

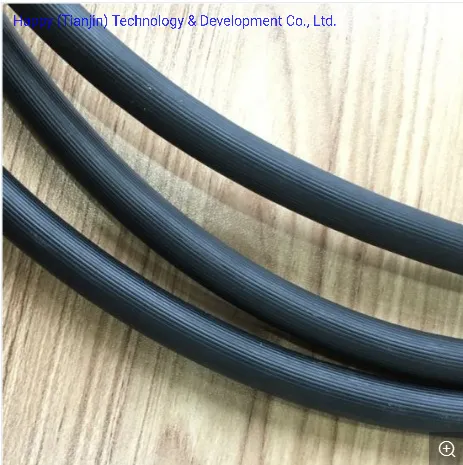

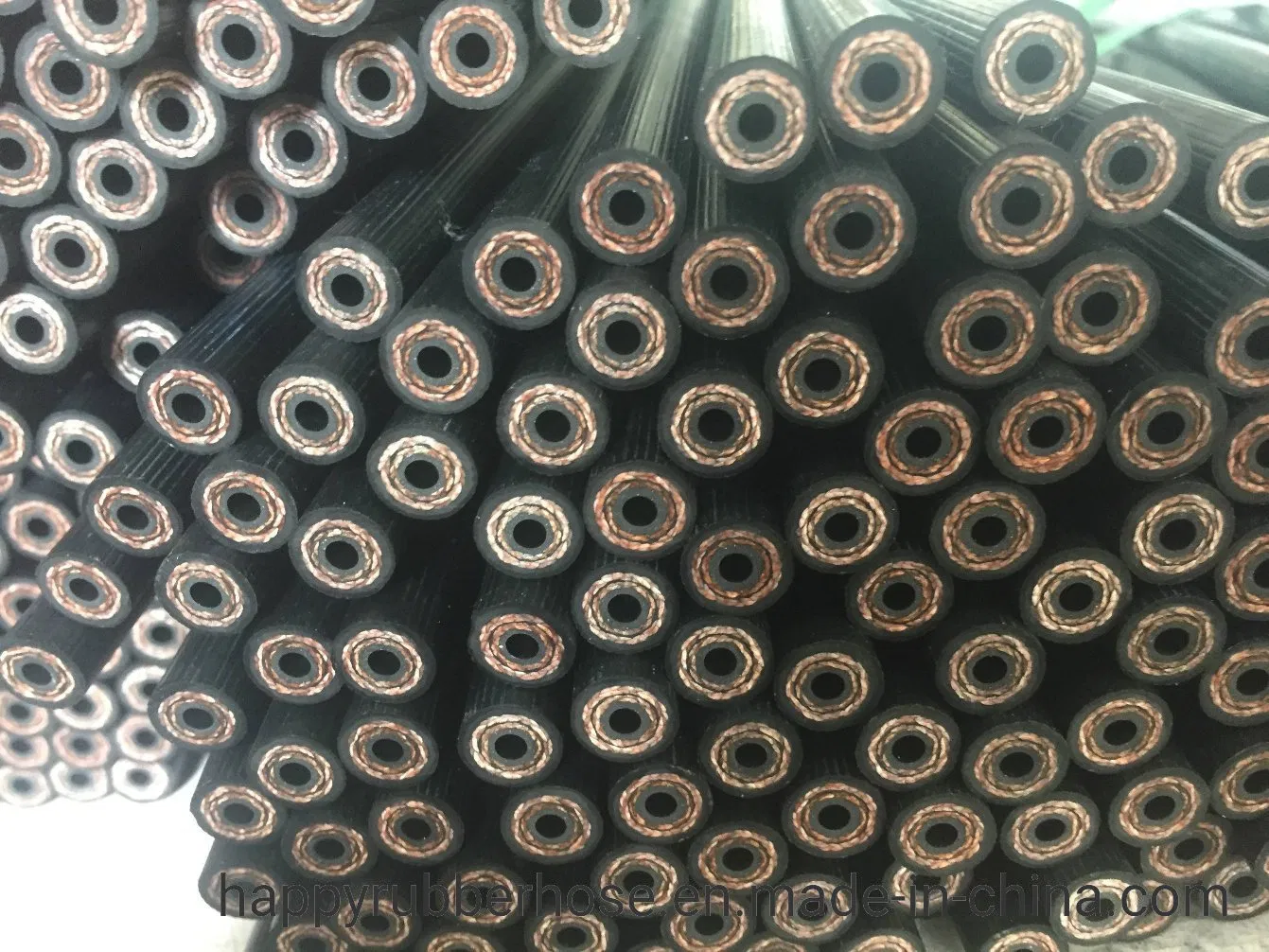

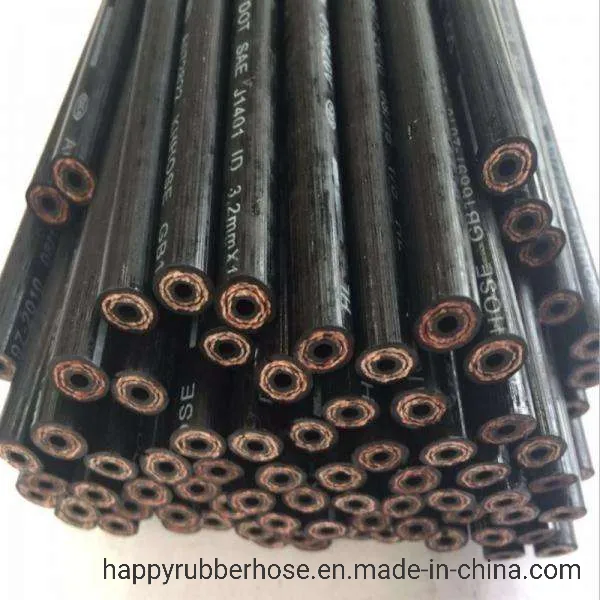

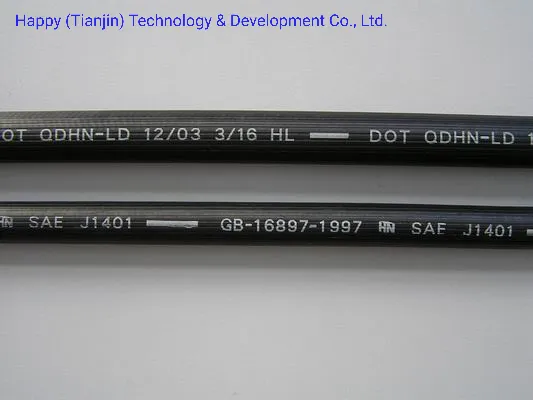

Pictures of oil brake hose
Standard: SAE J 1401
Structure of hydraulic brake hose:
Inner tube: seamless, brake fluid resistant speical compound synthetic rubber
Reinforcement: 2 high tensile synthetic textile braids
Outer tube: black, oil, weather and abrasion resistant synthetic rubber.
Safety factor: 3:1
Application: hydraulic brake lines automobiles
Temperature range: -40C(-40F) ~ +100C(+212F)
Specification of hydraulic oil brake hose
| Diameter | Dash | ID | OD | W.P. | B.P. | Bend Radius | Weight |
| inch | mm | mm | mpa | mpa | mm | kg/m | |
| 1/8" | -3 | 3.2 | 10.5 | 20 | 60 | 102 | 0.091 |
Pictures of oil brake hose
